ISC Mini Hot Forged Pulley for 13mm Rope

ISC Mini Hot Forged Pulley for 13mm Rope

SKU:RP048A1

This item qualifies for free delivery in the Republic of Ireland

  • Free delivery in the Republic of Ireland on orders over €120, otherwise €8.49
  • Free click and collect from our Cork shop
  • Authorised STIHL dealer, with a servicing workshop on site
  • 14-day returns by email to info@dfg.ie
Delivery & returns details
Regular price €136.00
Regular price Sale price €136.00

100% SECURE ONLINE SHOPPING GUARANTEED
We accept Visa, Mastercard, Debit & Credit Cards

FREE DELIVERY In Ireland ON ORDERS OVER €120
Quick Delivery With DPD Couriers

Call Or Email With Any Questions!
Amazing customer support

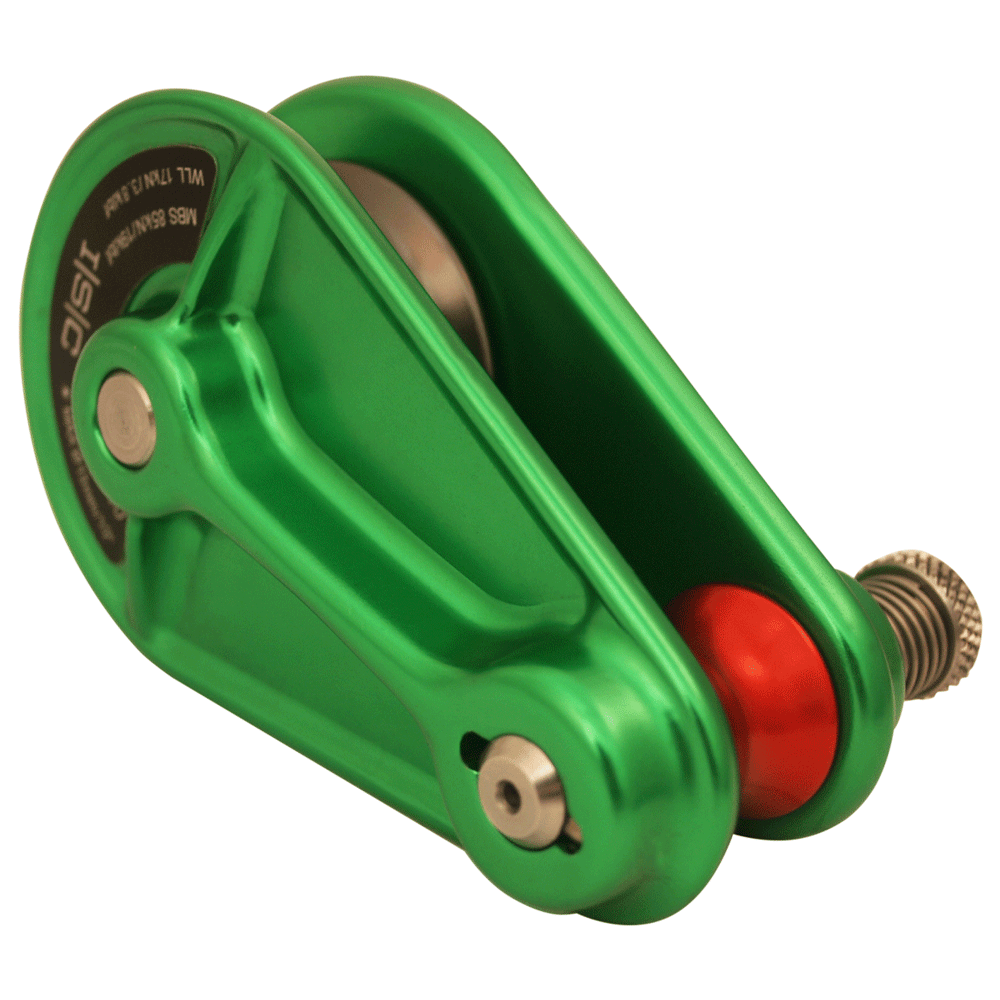

At approximately half the size of the standard small rigging pulley and weighing in at only 490g (1lb), the new Compact Rigging Pulley offers a highly impressive strength to weight ratio with an 85kN (19000lbf) MBS and a WLL of 17kN (3800lbf).

The Pulley plates are made from hot forged Aluminium and it is this manufacturing process which allows such a compact pulley to boast such great strength and dynamic load bearing capacity.

Working Line (Grey Sheave):
13mm (1/2") - 38kN (8500lbf)

Topping Strop (Red Sheave):
16mm (5/8") - 74kN (16650lbf)

The Compact Rigging Pulley is fitted with a spring-lock closure mechanism.

View full details

Technical Information

(MBS) Minimum Breaking Strength (kN)85
(MBS) Minimum Breaking Strength (lbf)19000
Pulley wheel colourGrey
Anchor wheel colourRed
Wheel materialAluminium
Body finishAnodised
ColourGreen/grey
Weight (grams)490
Weight (ounces)16
Height (mm)125
Height (inches)5
Width (mm)76
Width (inches)3

Approved Standards

CE 0120 Machinery Directive
