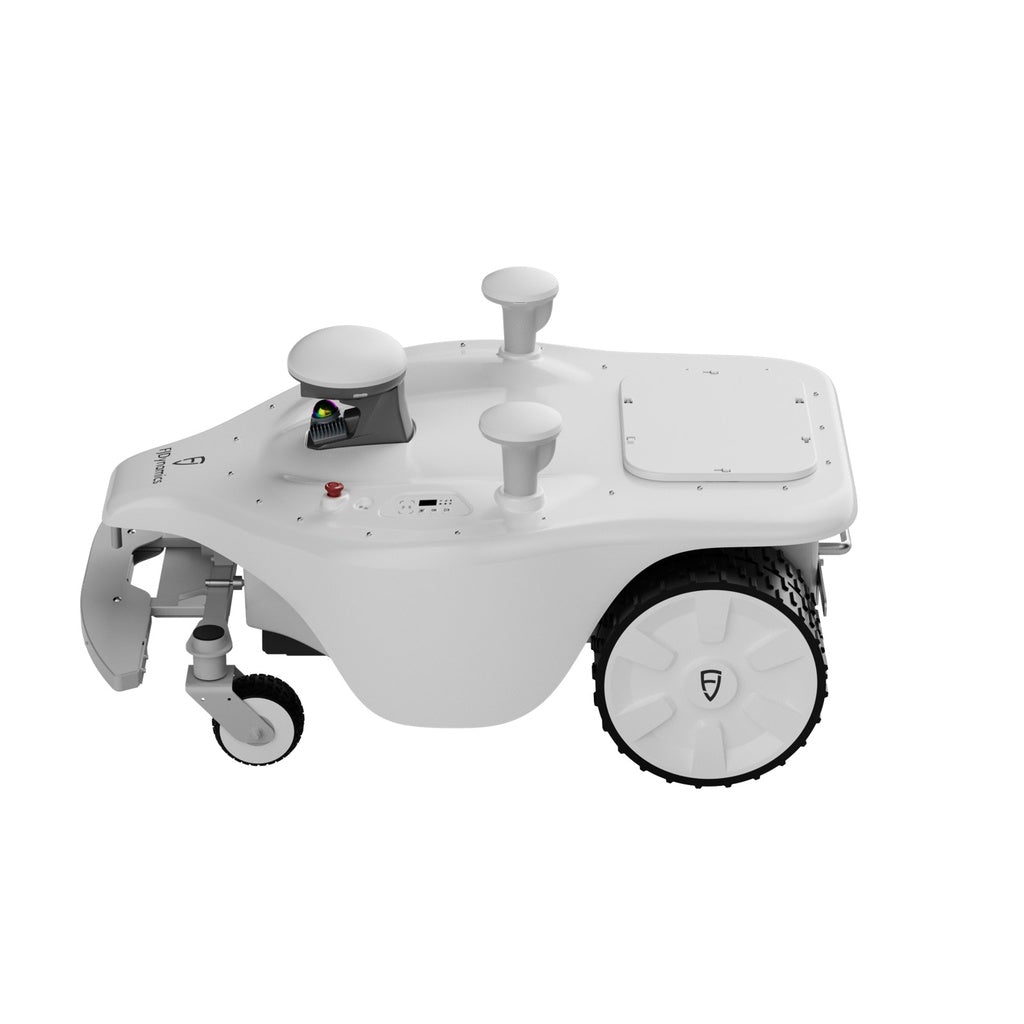

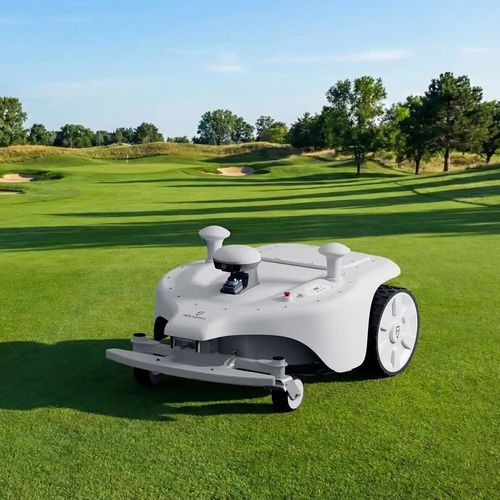

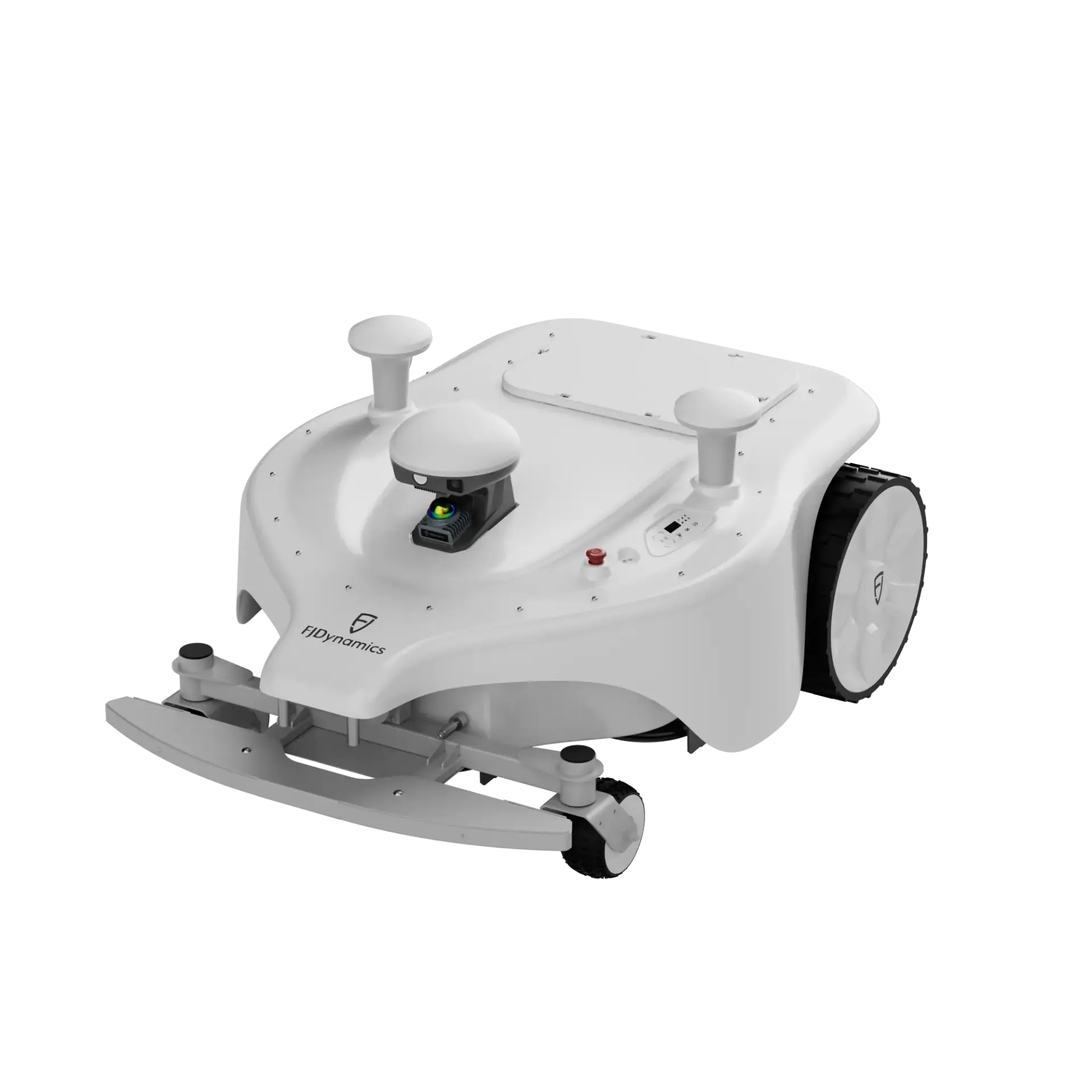

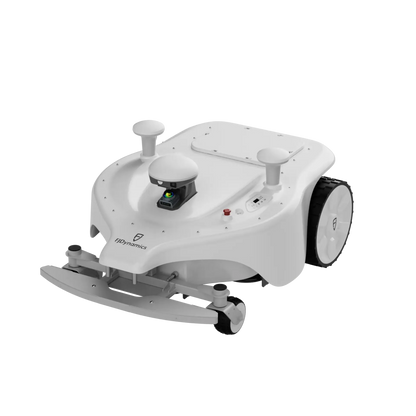

The FJDynamics Titanis a heavy-duty, commercial autonomous lawn mower engineered for continuous maintenance of large turf areas, including golf courses, sports complexes, municipal parks, and corporate grounds. It utilizes a triple-layer positioning setup (RTK GNSS, LiDAR, and Vision) to navigate complex outdoor environments without requiring physical boundary wires.
Key Technical Specifications
| Feature | Specification |
| Model | FJDynamics Titan Robotic Mower |
| Navigation System | Dual-RTK GNSS + LiDAR + Vision sensors |
| Boundary Type | Virtual Wire (RTK/LiDAR perimeter mapping) |
| Cutting Width | 730 mm (28.7 in) total across 3 cutting discs |
| Cutting Height Range | 10 mm – 100 mm (0.4 in – 4.0 in) |
| Cutting Mechanism | 3 discs with 6 pivoting razor blades per disc (18 total blades) |
| Coverage (Per Charge) | Up to 18,000 m² (4.5 acres) |

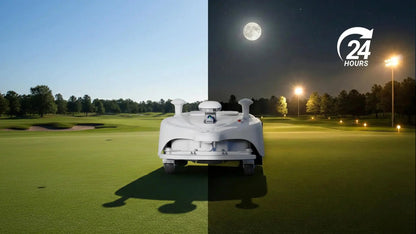

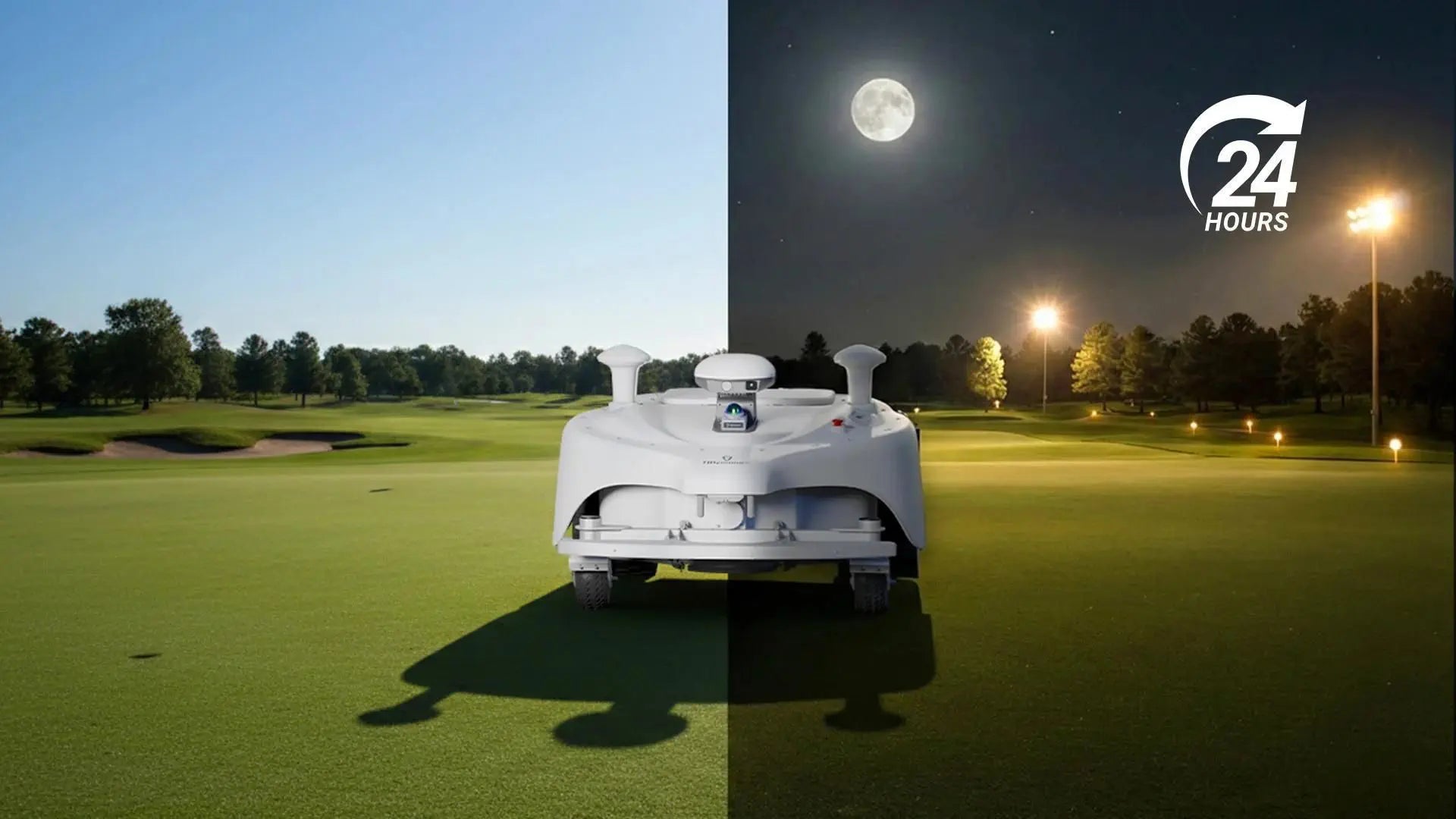

| Coverage (24 Hours) | Up to 42,000 m² (10.4 acres) |
| Coverage (72 Hours) | Up to 126,000 m² (31 acres) via fast battery swapping |
| Battery Capacity | 2 kWh |
| Runtime per Charge | Up to 480 minutes (8 hours) |
| Charge Time | ~120 minutes |
| Travel Speed | Up to 3.6 km/h (2.2 mph) |

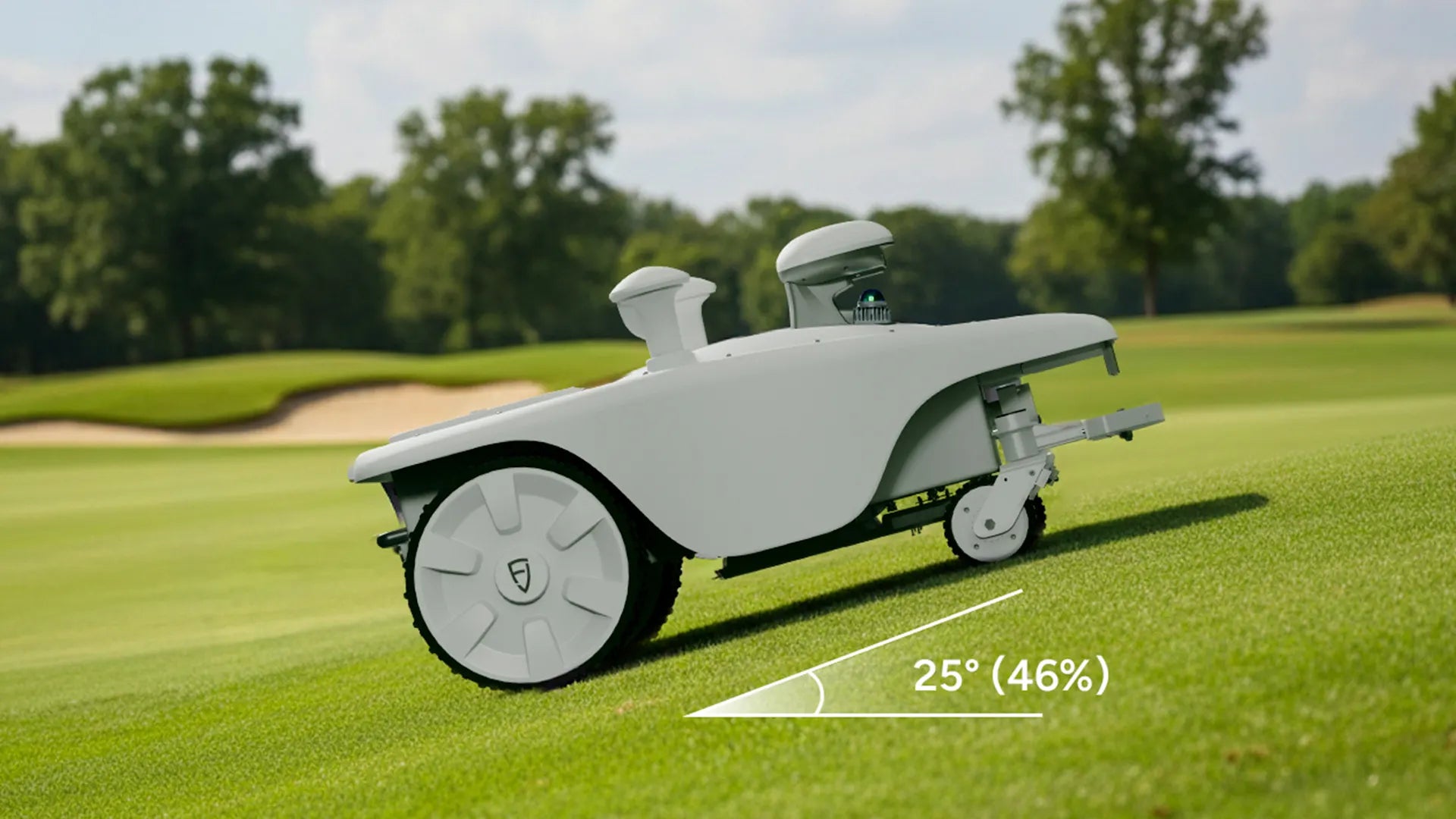

| Max Slope Gradient | Up to 20° – 25° (36% – 46% grade) |
| Dimensions (L × W × H) | 1400 × 1050 × 650 mm (55.1 × 41.3 × 25.6 in) |
| Unit Weight | 122 kg (287 lbs) |
| IP Rating | IP64 weather-resistant rating |
| Operating Noise Level | 52 dB(A) to 66 dB(A) depending on cutter speed |
| Connectivity | 4G, Wi-Fi |
Core Systems & Architecture
1. Navigation & Positioning
-

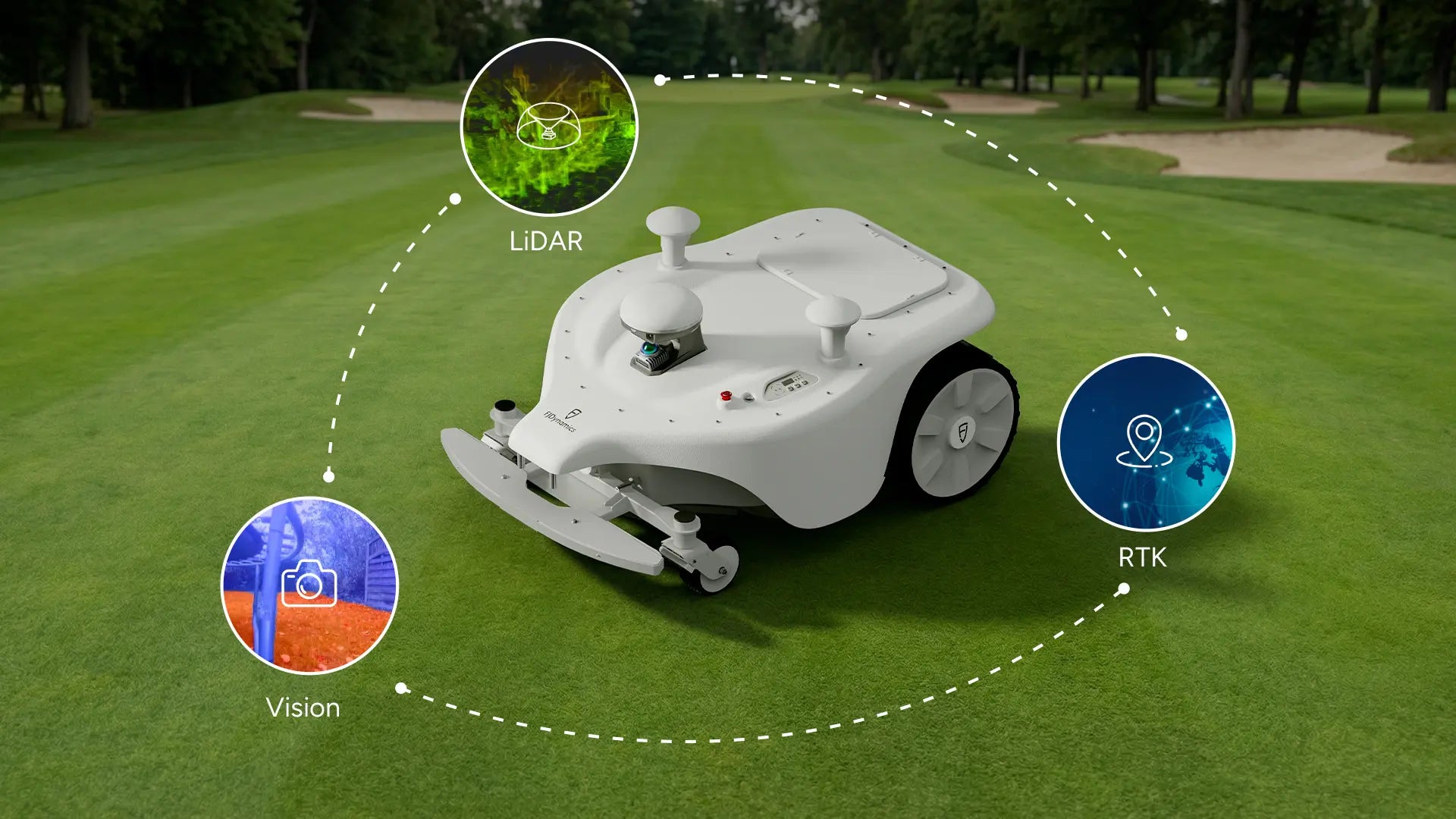

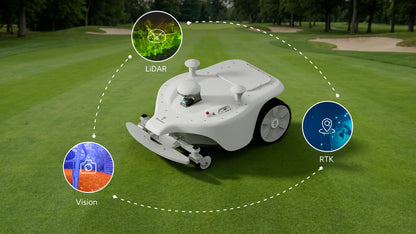

3-Layer Guidance Setup: Integrates Dual-RTK GNSS antennas, LiDAR sensors, and optical cameras to achieve centimeter-level positioning accuracy.
-
Obstacle Detection: Active vision and LiDAR enable the unit to detect, stop, and route around dynamic objects, trees, and terrain shifts in real time.
-
Virtual Boundaries: Mowing boundaries, keep-out zones, and transit paths are established digitally via RTK mapping, eliminating physical perimeter wiring.
2. Power & Battery Management
-
Dual Charging Modes: Supports both autonomous dock charging and manual fast battery swapping.
-
Energy Capacity: Equipped with a 2 kWh lithium battery providing up to 8 hours of runtime per charge cycle.
-
Continuous Duty Cycle: Utilizing battery swapping, operating time can extend to continuous multi-day cycles covering up to 31 acres within 72 hours.
3. Cutting & Chassis Design
-
Multi-Disc Cutter Head: Houses three independent cutting discs (260 mm / 10.2 in each) equipped with pivoting razor blades designed to reduce motor load on dense turf.
-
Automated Height Adjustment: Cut height adjusts electronically between 10 mm and 100 mm via software control.
-
Terrain Handling: Built on a front-suspension chassis designed to maintain traction and cutting uniformity across uneven surfaces and inclines up to 25°.
4. Software & Fleet Management
-
Cloud Platform Integration: Connects with FJD software platforms (GreenMaster / GolfMind) for task planning, zone setting, and fleet scheduling.
-
Security & Diagnostics: Features GPS tracking, geofence alarm triggers, PIN authorization, and Over-the-Air (OTA) firmware updating.
-

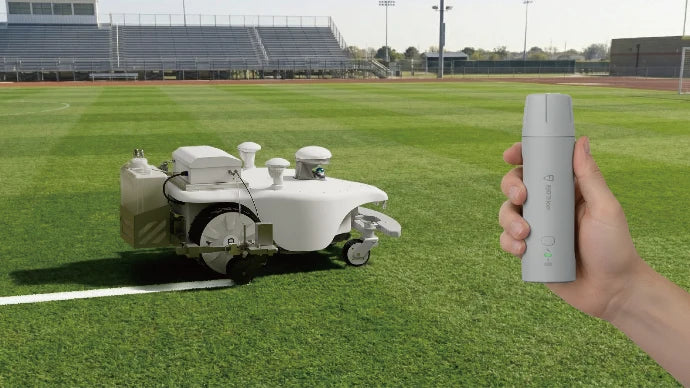

Modular Compatibility: Supports auxiliary field-marking kits for dual-purpose line painting on athletics fields.
Commercial Applications
-
Golf Courses: Fairway and rough management.
-
Sports Fields: Soccer, football, and athletic complexes.
-
Public & Corporate Turf: Municipal parks, university campuses, and commercial developments.
-
Infrastructure Sites: Utility properties, solar power facilities, and airport perimeters.
