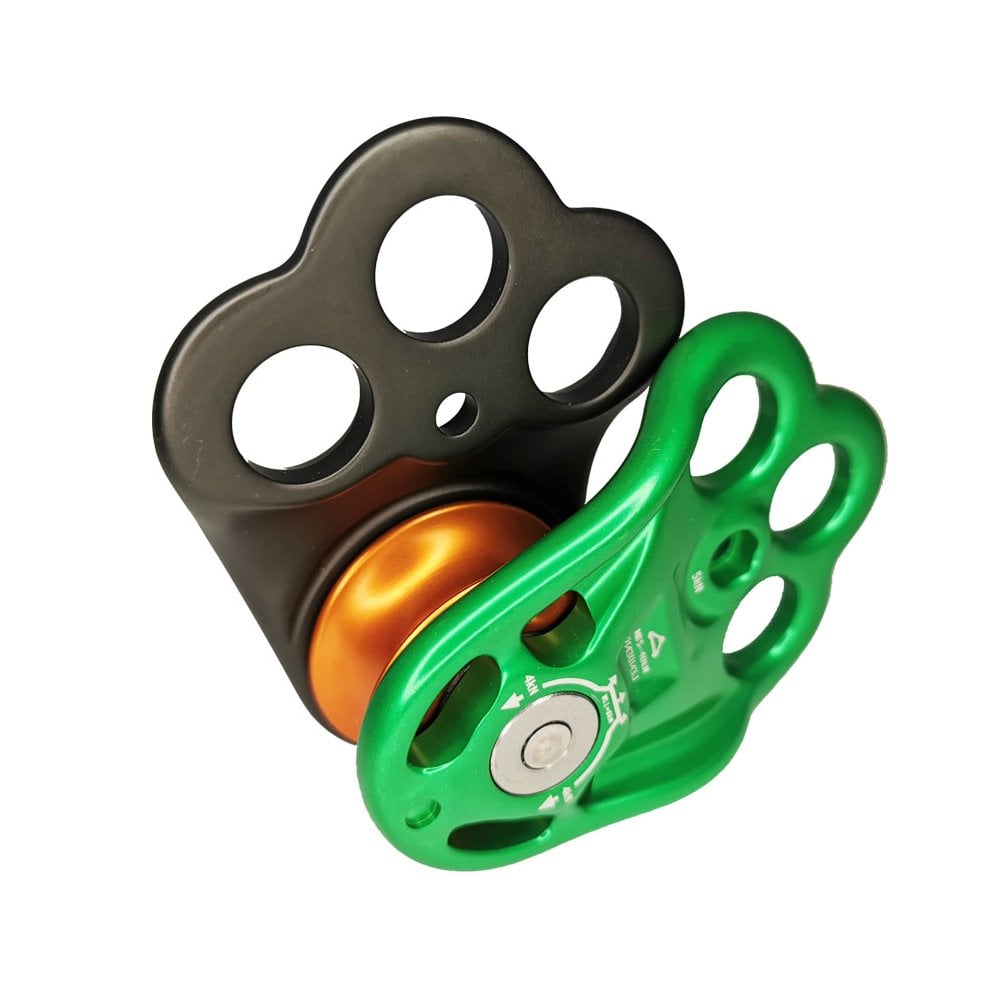

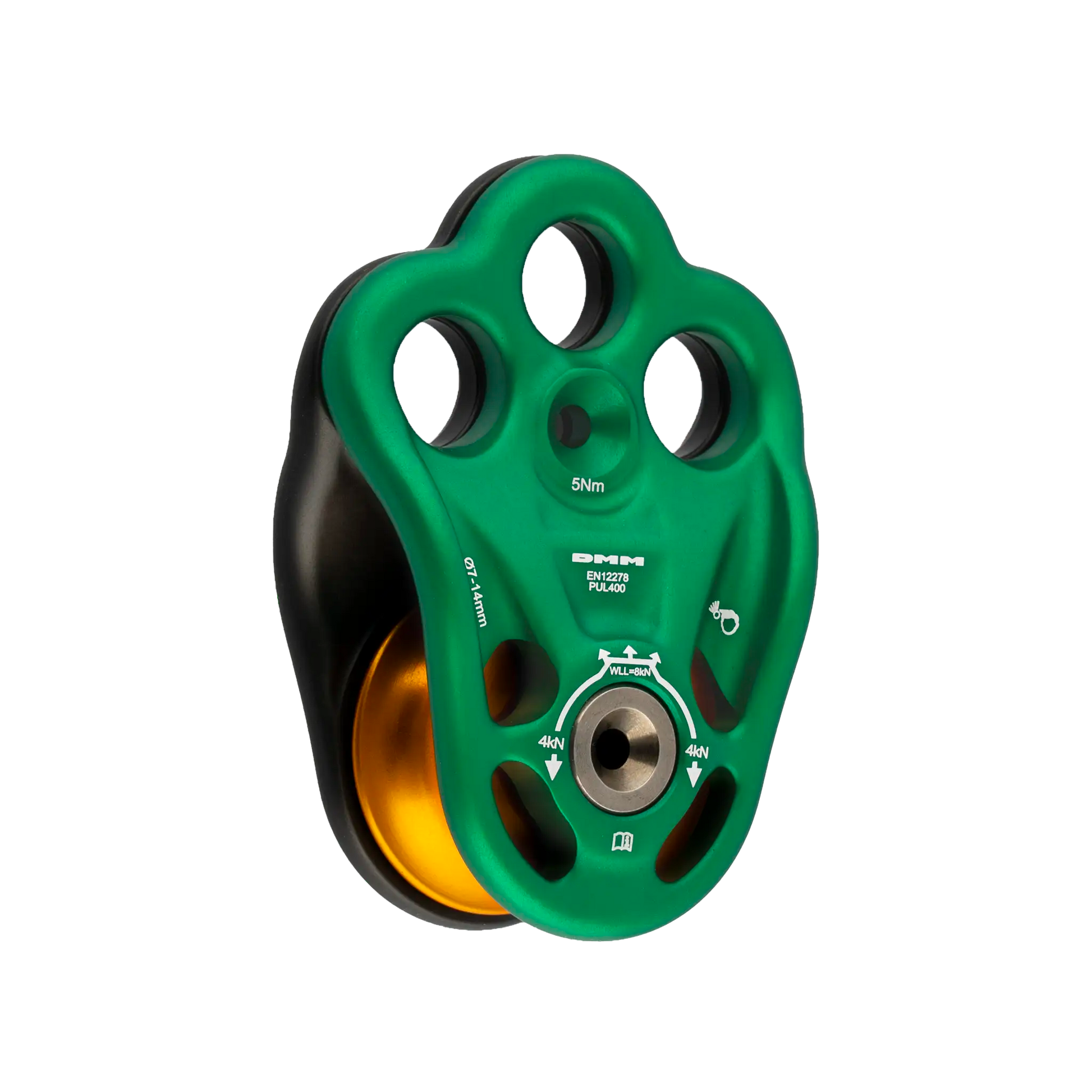

An evolution of the Triple Attachment Pulley first brought to the market 10 years ago by DMM.
The hot forged swing-cheek pulley with an in-built three hole rigging plate allows creative configurations and enables direct connection to textile components to save on weight and complication. The Rigger Pulleys feature a new axle construction achieved by using highly accurate CNC operations, which produces a stronger axle/side plate interface for increased longevity.
Bolstered connection areas lead to high configured strengths. The newly developed side plates combined with the axle construction means a hugely increased MBS to 40kN. The side plates boast increased fairleads and tuned angles for more efficient prusik minding.
The Rigger Pulley comes in two versions; the Rigger and the Rigger Becket. Both feature high efficiency roller bearings.
FEATURES
- Ultra-high strength pulley side plates
- High efficiency roller bearings
- Hollow axle for reduced weight
- Increased rope-bearing cross-section for textile attachments to the attachment holes
- Same sheave as previous Triple Attachment Pulley
- New axle design to increase robustness of the axle/ nut to side plate interface
- Can be used as rig plate with or without sheave
- Optional M5 nut and bolt for locking side plates together
Spare parts info.
The locking hardware is non-structural and can be purchased separately. We recommend:
- M5 x 16mm countersunk screw A2 stainless.
- M5 Nyloc nut A2 stainless.
