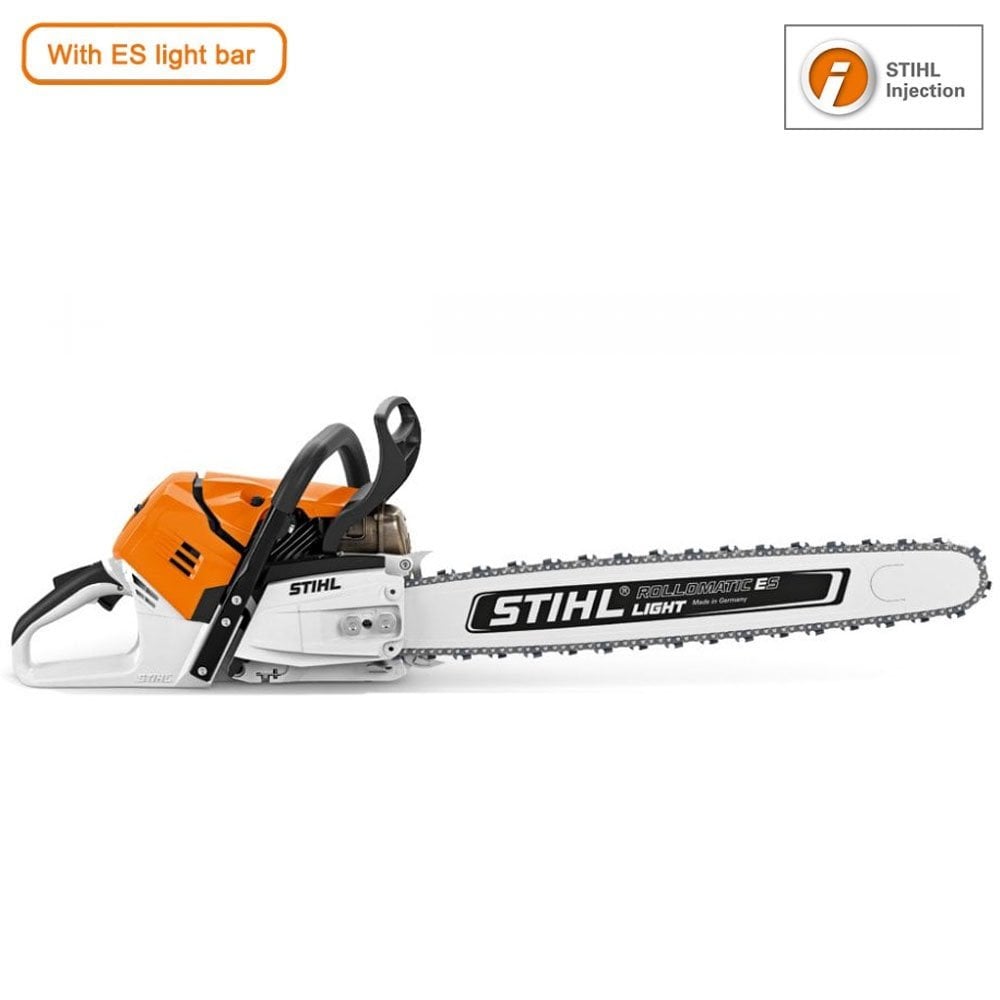

Stihl MS 500i Chainsaw

Stihl MS 500i Chainsaw

11470113000SET20"

€1,480.00
€1,499.00 €1,480.00
-1% Sale Sold out
Bar Length

100% SECURE ONLINE SHOPPING GUARANTEED
We accept Visa, Mastercard, Debit & Credit Cards

FREE DELIVERY In Ireland ON ORDERS OVER €99
Quick Delivery With DPD Couriers

Call Or Email With Any Questions!
Amazing customer support

STIHL MS 500i: Pioneering chainsaw with fuel injection

The innovative MS 500i chainsaw from STIHL is the world’s first chainsaw with electronically controlled fuel injection. Its agile, performance-optimised engine accelerates very quickly. Thanks to its extremely successful lightweight design, this tool achieves an impressively low power-to-weight ratio of 1.24 kg/kW. This high-torque machine is a powerful solution for use in professionally harvesting large timber.

The MS 500i features a simple start-up sequence as well as very good starting behaviour under all usage conditions. Sensory fuel metering guarantees that the mixture is directly adapted to the oxygen content of the air. Like the MS 462, this saw can be very easily pivoted and – thanks to its new bumper spikes and sprocket cover – can be guided close to tree trunks.

Exterior design of STIHL guide bars are subject to change. Technical specifications remain the same.

  • The first high-power chainsaw worldwide with an electronic fuel injection system
  • Perfect for working on hardwood
  • Very easy to start and operate
  • Accelerates from 0 to 100 km/h in 0.25 seconds
  • Best power-to-weight ratio on the market
View full details

TECHNICAL DETAILS

Displacement 79.2 cm3
Power output 5/6.8 kW/bhp
Bar length 50-63 cm
Bar length 20-25 in
Weight 6.2 kg 1)
Weight 7.47 / 7.78 kg 2)
Power-to-weight ratio 1.24 kg/kW
Sound pressure level 106 dB(A) 3)
Sound power level 119 dB(A) 3)
Vibration values left/right 4.2/4 m/s² 4)
STIHL Oilomatic saw chain pitch/type 3/8"
Oil pump Adjustable
Tank volume 0.78 l
Chain pitch 3/8"
Chain tensioning Side chain tensioner
Filter Cartridge filter HD2
Filter material PET fabric
Bumper spike Steel spike
Cylinder 4 channel / chrome
Oil tank volume 325 cm3
Sprocket Rim sprocket
Anti vibration system Full AV-System
Filler cap Tool-free filler cap
EPA Certified fuel consumption 2.707 l/h
CO² ­ 707 g/kWh
Handle type Standard grip
Exhaust Standard silencer
Speed at maximum power 10000 rpm
EPA Certified fuel consumption 0.715 glh
Capacity 4.83 cu-in
Rollomatic E, cutting length 50 cm
1)Without fuel, without bar and chain2)Without fuel, with bar and chain3)K-factor according to DIR 2006/42/EC = 2.5 dB (A)4)K-factor according to DIR 2006/42/EC = 2m / s ²
Features

Standard features

  • STIHL Injection (i)Zoom
    STIHL Injection (i)

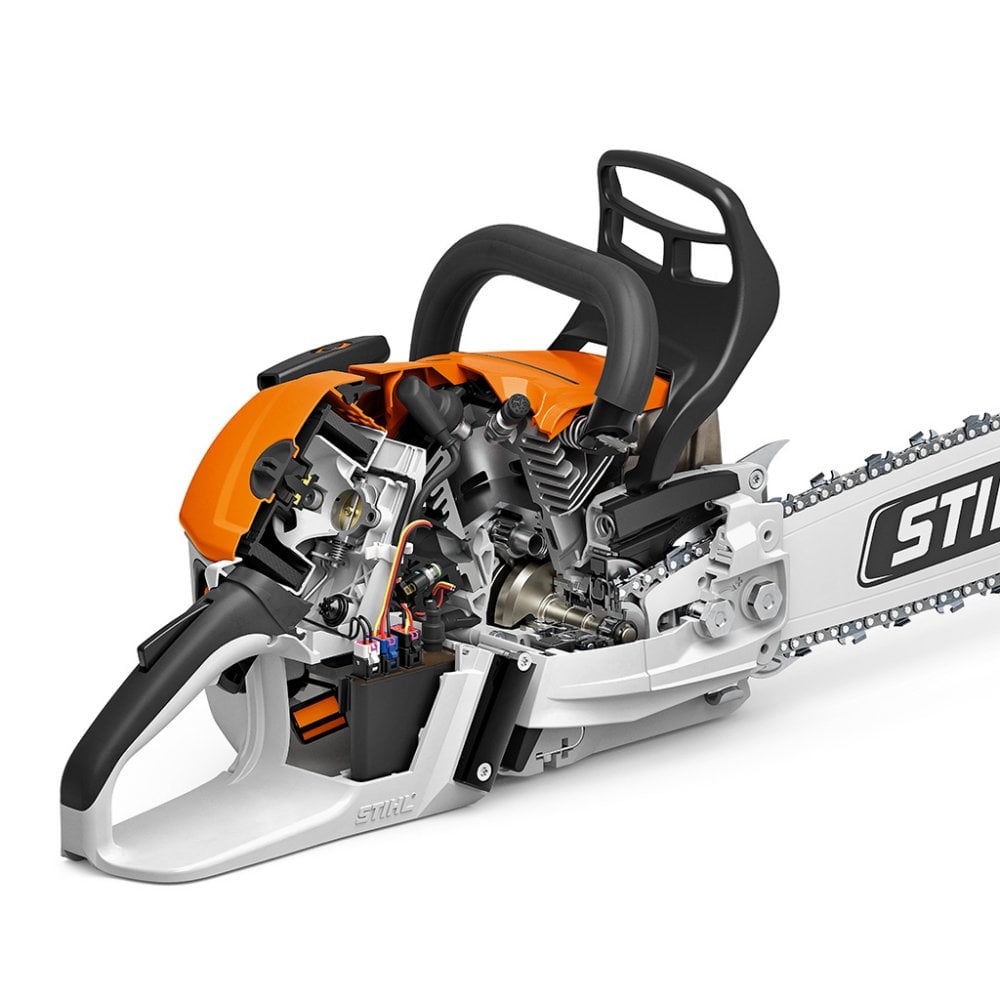

    STIHL injection technology enables the MS 500i to achieve extremely high performance with extraordinarily low displacement and low weight. The saw uses innovative technology to achieve rapid acceleration from 0 to 100 km/h in an unbelievable 0.25 seconds. The powerful saw is ready to use right away. Sensors measure air pressure and internal and external temperature, and pass information on to the control unit. This can use the identified values to determine the optimum fuel quantity and ignition timing.
  • Best power-to-weight ratioZoom
    Best power-to-weight ratio
    Its revolutionary chainsaw engine technology, and resulting intelligent lightweight construction result in the best power-to-weight ratio on the market. The optimised design – with lightweight sprocket cover, more compact engine unit, flywheel with a low design height, and a reduced-weight crankshaft adapted to the low weight of the flywheel – makes work significantly more comfortable. The MS 500i is ideal for heavy timber felling, cutting into lengths, and pruning.
  • Decompression valveZoom
    Decompression valve
    The decompression valve is part of the easy starting system. The valve should be pressed before starting to reduce the compression pressure when starting, as well as reducing the effort needed to pull the starter rope. The decompression valve is semi-automatic; it must be pressed manually before starting, but then closes automatically.
  • Sensor-controlled fuel meteringZoom
    Sensor-controlled fuel metering
    In addition to the external temperature sensor, the MS 500i also has a pressure and internal temperature sensor in its engine. This measures the environmental pressure on start-up, and during operation it checks the engine temperature and pressure in the crankcase. The electrical voltage generator delivers the required speed information. The control unit processes these values, meaning that the system adapts to the conditions of use. The fuel is then dosed at the optimum level, quickly resulting in perfect running characteristics.
  • Very easy to start, whether starting from cold or Zoom
    Very easy to start, whether starting from cold or
    The starting process is perfect, with no need for a start position, and easy access to the purger.
  • STIHL 2-MIX-EngineZoom
    STIHL 2-MIX-Engine
    1-in-4 channel technology. The economical STIHL 2-MIX engine with 1-in-4channel technology features a high torque over a wide speed range. The chainsaw provides fuel savings of up to 20% compared to STIHL two-stroke engines in the same performance class without 2-MIX technology. Exhaust emissions are reduced by up to 50%.
  • Anti-vibration systemZoom
    Anti-vibration system
    Intense vibration at the handles of power tools can lead to long-term effects on blood vessels in the hands and arms. STIHL has therefore developed an effective anti-vibration system whereby the oscillations from the machine's engine are dampened which significantly reduces vibrations at the handles.
  • HD2 filter with radial sealZoom
    HD2 filter with radial seal
    The new HD2 air filter, made from PET material and featuring a radial seal, prevents the intake of fine dust particles. The hermetic seal increases the service life of the engine and reduces wear.
  • Captive nutsZoom
    Captive nuts
    When changing the cutting attachment, you will not risk losing the nuts on the sprocket. The MS 261 is the first STIHL chainsaw to be equipped with the captive nuts. A great advantage for all users.
  • Plunge guide Zoom
    Plunge guide
    Marking has been added to the fan housing to assist with plunge cuts. This ensures better directional control and safe use of the machine during plunge cutting.
  • Optimised bumper spikesZoom
    Optimised bumper spikes
    The tooth length of the bumper spikes has been adjusted to account for the radial contours of trees. The saw bites into wood even better when cutting lengths and felling.
  • Side chain tensionerZoom
    Side chain tensioner
    The tensioning screw can be found on the side of the chain saw through the sprocket cover. This removes the need for contact with the sharp saw chain.
  • STIHL ElastoStartZoom
    STIHL ElastoStart
    STIHL ElastoStart reduces the shock caused by the compression of the engine during starting. The compression shock is taken away from the user's joints and muscles through a spring or rubber element in the starter handle.
  • Tool free filler capsZoom
    Tool free filler caps
    Special catches on the fuel and oil tanks for easy opening and locking without the need for tools.
  • Optimised sprocket coverZoom
    Optimised sprocket cover
    The flatter, narrower sprocket cover with integrated slide rails reduces effort when pruning and ensures outstanding chip removal.
  • STIHL Ematic with new oil pump systemZoom
    STIHL Ematic with new oil pump system
    The new oil pump system allows a higher volume of oil to be delivered. This is especially useful in dusty conditions or when using a long guide bar.
